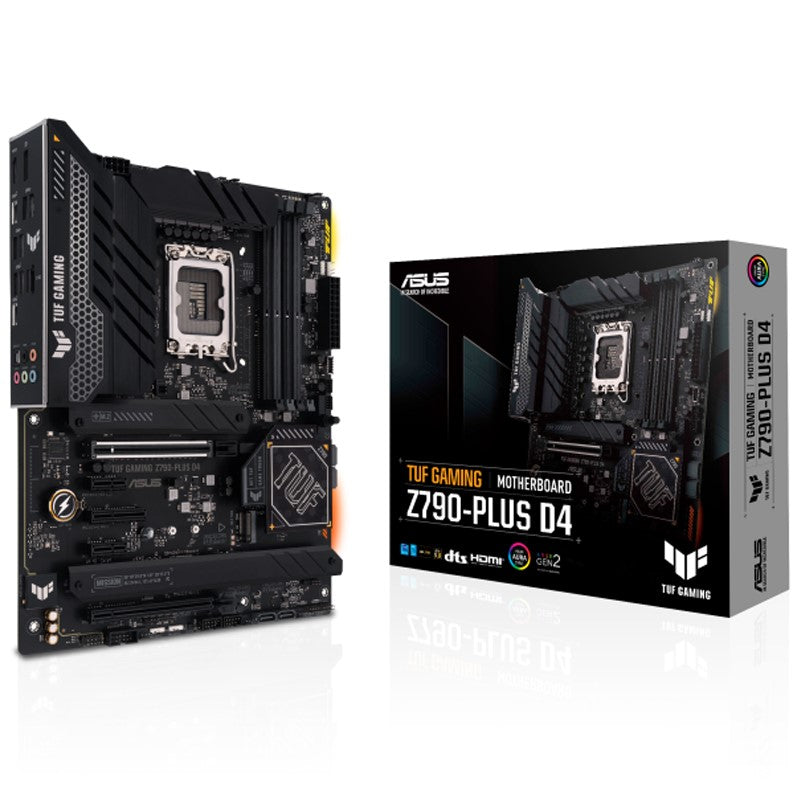

Asus TUF Gaming Z790-PLUS D4 ATX Motherboard
|
Detail Info
- 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks
- PCIe 5.0 for graphics cards
- Realtek S1220A Codec
- USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 2 Type-C header
- PCIe Q-Release|2.5 Gb Ethernet|AI Cooling II
- Intel Socket LGA1700 for 13th Gen Intel Core Processors
- 4 x DIMM » DDR4 5333 (OC) » Dual Channel » OptiMem II
- Expansion Slots » 1 x PCIe 5.0 x16 SafeSlot » 1 x PCIe 4.0 x16 Slot (max @x4) » 1 x PCIe 4.0 x4 » 2 x PCIe 3.0 x1
- 4 x M.2 Slots » 1 x M.2 2280 PCIe 4.0 X4 » 2 x M.2 22110 PCIe 4.0 X4 » 1 x M.2 2280 PCIe 4.0 X4 & SATA Modes
- Product Type : Motherboard
- Motherboard : Z790-Plus
Product Details
AI Cooling II Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds |
|
UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans. All-Around Energy Efficiency The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. |
|
DrMOS Power Stages 16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors |
|
Six-Layer PCB Design The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. |
|
Digi+ VRM The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
|
|
SafeSlot & SafeDIMM SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot all to ensure users get the highest-possible data speeds |
|
Intel2.5 Gb Ethernet On-board 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X Two-Way AI Noise Cancelation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices |
Specifications
CPU |
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* |
Chipset |
Intel Z790 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC )/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) |
|
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
|
Dual Channel Memory Architecture |
|
Supports Intel Extreme Memory Profile (XMP) |
|
OptiMem II |
Graphics |
1 x DisplayPort** |
|
1 x HDMI port*** |
Expansion Slots |
Intel 13th & 12th Gen Processors* |
|
1 x PCIe 5.0 x16 slot |
|
Intel Z790 Chipset |
|
1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
1 x PCIe 4.0 x4 slot |
|
2 x PCIe 3.0 x1 slots |
Storage |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
|
Intel 13th & 12th Gen Processors |
|
M.2_1 slot (Key M), type 2242/2260/2280/22110 |
|
Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode |
|
Intel Z790 Chipset |
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
|
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
|
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
|
4 x SATA 6Gb/s ports |
|
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Ethernet |
1 x Intel® 2.5Gb Ethernet |
|
TUF LANGuard |
USB |
Rear USB (Total 8 ports) |
|
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
|
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) |
|
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
|
Front USB (Total 7 ports) |
|
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
|
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
|
Impedance sense for front and rear headphone outputs |
|
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
|
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
|
Supports up to 32-Bit/192 kHz playback*" |
|
Audio Features |
|
Audio Shielding |
|
Rear optical S/PDIF out port |
|
Premium audio capacitors |
|
Dedicated audio PCB layers |
|
Audio Cover |
|
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
|
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) |
|
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
|
1 x DisplayPort |
|
1 x HDMI port |
|
1 x Intel 2.5Gb Ethernet port |
|
5 x Audio jacks |
|
1 x Optical S/PDIF out port |
Internal I/O Connectors |
Fan and Cooling related |
|
1 x 4-pin CPU Fan header |
|
1 x 4-pin CPU OPT Fan header |
|
1 x 4-pin AIO Pump header |
|
4 x 4-pin Chassis Fan headers |
|
Power related |
|
1 x 24-pin Main Power connector |
|
1 x 8-pin +12V Power connector |
|
1 x 4-pin +12V Power connector |
|
Storage related |
|
4 x M.2 slots (Key M) |
|
4 x SATA 6Gb/s ports |
|
USB |
|
1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
|
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
Miscellaneous |
|
3 x Addressable Gen 2 headers |
|
1 x Aura RGB header |
|
1 x Clear CMOS header |
|
1 x COM Port header |
|
1 x Front Panel Audio header (AAFP) |
|
1 x 20-3 pin System Panel header with Chassis intrude function |
|
1 x Thunderbolt™ (USB4®) header |
Special Features |
ASUS TUF PROTECTION |
|
DIGI+ VRM (- Digital power design with DrMOS) |
|
ESD Guards |
|
TUF LANGuard |
|
Overvoltage Protection |
|
Safeslot |
|
Stainless-Steel Back I/O |
|
ASUS Q-Design |
|
M.2 Q-Latch |
|
PCIe Slot Q-Release |
|
Q-DIMM |
|
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
|
Q-Slot |
|
ASUS Thermal Solution |
|
M.2 heatsink |
|
VRM heatsink design |
|
ASUS EZ DIY |
|
CPU Socket lever protector |
|
ProCool |
|
Pre-mounted I/O shield |
|
SafeDIMM |
|
AURA Sync |
|
Aura RGB header |
|
Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
|
Armoury Crate |
|
Aura Creator |
|
Aura Sync |
|
Fan Xpert 4 (with AI Cooling II) |
|
Two-Way AI Noise Cancelation |
|
Power Saving |
|
AI Suite 3 |
|
TurboV EVO |
|
DIGI+ VRM |
|
PC Cleaner |
|
TUF GAMING CPU-Z |
|
DTS Audio Processing |
|
Norton 360 for Gamers |
|
WinRAR |
|
UEFI BIOS |
|
ASUS EZ DIY |
|
ASUS CrashFree BIOS 3 |
|
ASUS EZ Flash 3 |
|
ASUS UEFI BIOS EZ Mode |
BIOS |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
|
2 x SATA 6Gb/s cables |
|
Miscellaneous |
|
1 x TUF GAMING sticker |
|
2 x M.2 Rubber Packages |
|
1 x Screw package for M.2 SSD |
|
Documentation |
|
1 x TUF Certification card |
|
1 x User guide |
Operating System |
Windows 11, Windows 10 64-bit |
Form Factor |
ATX Form Factor |
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
