Asus PRIME Z790-P WIFI ATX Gaming Motherboard
|
Detail Info
- Intel LGA 1700 socket: Ready for 12th and 13th Gen Intel processors
- Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: Intel Wi-Fi 6, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt (USB4) header support, 3 PCIe 4.0 M.2
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- Motherboard : Z790
- Product Type : Motherboard
Product Details
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
AI Cooling ll
AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Cooling
PRIME Z790-P WIFI D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsinks
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.
Removable captive screws reduce risk of drops or loss during heatsink removal.
VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
Performance
The PRIME Z790-P WIFI D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P WIFI D4 is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
14 + 1 Teamed Power Stages
14 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to latest Intel processors.
DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
Storage
Three M.2 Slots (up to 64 Gbps)
PRIME Z790-P WIFI D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIeth 4.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 5.0 Slot
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.
USB 3.2 Gen 2x2 Type-C
A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C connector with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.
Thunderbolt 4 (USB4 compliant)
PRIME Z790-P WIFI D4 motherboard features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
WiFi 6
The Intel® WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
LANGuard
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
SafeSlot Core+
PCIe® 5.0 is 2x faster than PCIe® 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
Specifications
CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
|
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
|
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel® Z790 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
|
Dual Channel Memory Architecture |
|
Supports Intel® Extreme Memory Profile (XMP) |
|
OptiMem II |
|
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration |
Graphics |
1 x DisplayPort** |
|
1 x HDMI® port*** |
|
*Graphics specifications may vary between CPU types |
|
** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
|
*** Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots |
|
Intel® 13th & 12th Gen Processors* |
1 x PCIe 5.0 x16 slot |
Intel® Z790 Chipset |
3 x PCIe 4.0 x16 slots (support x4 mode) |
|
1 x PCIe 3.0 x1 slot |
Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
|
Intel® 13th & 12th Gen Processors |
|
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
|
Intel® Z790 Chipset |
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
|
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
|
4 x SATA 6Gb/s ports |
|
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth |
Wi-Fi 6 |
|
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
|
Supports 2.4/5GHz frequency band |
|
Bluetooth® v5.2 |
USB |
|
Rear USB (Total 8 ports) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
|
1 x USB 3.2 Gen 2 port (1 x Type-A) |
|
2 x USB 3.2 Gen 1 ports (2 x Type-A) |
|
4 x USB 2.0 ports (4 x Type-A) |
Front USB (Total 9 ports) |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
|
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
|
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. |
Audio |
|
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
- Supports up to 24-Bit/192 kHz playback |
Audio Features |
- Audio Shielding |
|
- Premium audio capacitors |
|
- Dedicated audio PCB layers |
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
|
1 x USB 3.2 Gen 2 port (1 x Type-A) |
|
2 x USB 3.2 Gen 1 ports (2 x Type-A) |
|
4 x USB 2.0 ports (4 x Type-A) |
|
1 x DisplayPort |
|
1 x HDMI® port |
|
1 x Wi-Fi Module |
|
1 x Realtek 2.5Gb Ethernet port |
|
3 x Audio jacks |
|
1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors |
|
Fan and Cooling related |
1 x 4-pin CPU Fan header |
|
1 x 4-pin CPU OPT Fan header |
|
1 x 4-pin AIO Pump header |
|
3 x 4-pin Chassis Fan headers |
Power related |
1 x 24-pin Main Power connector |
|
1 x 8-pin +12V Power connector |
|
1 x 4-pin +12V Power connector |
Storage related |
3 x M.2 slots (Key M) |
|
4 x SATA 6Gb/s ports |
USB |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
|
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Miscellaneous |
3 x Addressable Gen 2 headers |
|
1 x Aura RGB header |
|
1 x Clear CMOS header |
|
1 x COM Port header |
|
1 x Front Panel Audio header (AAFP) |
|
1 x S/PDIF Out header |
|
1 x SPI TPM header (14-1pin) |
|
1 x 20-5pin System Panel header |
|
1 x Thunderbolt™ (USB4®) Header |
Special Features |
|
ASUS 5X PROTECTION III |
- DIGI+ VRM (- Digital power design with DrMOS) |
|
- LANGuard |
|
- Overvoltage Protection |
|
- SafeSlot Core+ |
|
- Stainless-Steel Back I/O |
ASUS Q-Design |
- Q-DIMM |
|
- Q-Slot |
|
- Q-LED Core |
ASUS Thermal Solution |
- Flexible M.2 heatsink |
|
- VRM heatsink design |
ASUS EZ DIY |
- ProCool |
Aura Sync |
- Aura RGB header |
|
- Addressable Gen 2 headers |
Software Features |
|
ASUS Exclusive Software |
Armoury Crate |
|
- Aura Sync |
|
- Fan Xpert 4 (with AI Cooling II) |
|
- Power Saving |
AI Suite 3 |
-TurboV EVO |
|
-PC Cleaner |
|
-DIGI+ VRM |
ASUS CPU-Z |
Yes |
MyASUS |
Yes |
WinRAR |
Yes |
UEFI BIOS |
Yes |
ASUS EZ DIY |
- ASUS CrashFree BIOS 3 |
|
- ASUS EZ Flash 3 |
|
- ASUS UEFI BIOS EZ Mode |
BIOS |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
|
Cables |
2 x SATA 6Gb/s cables |
Miscellaneous |
1 x ASUS Wi-Fi moving antennas |
|

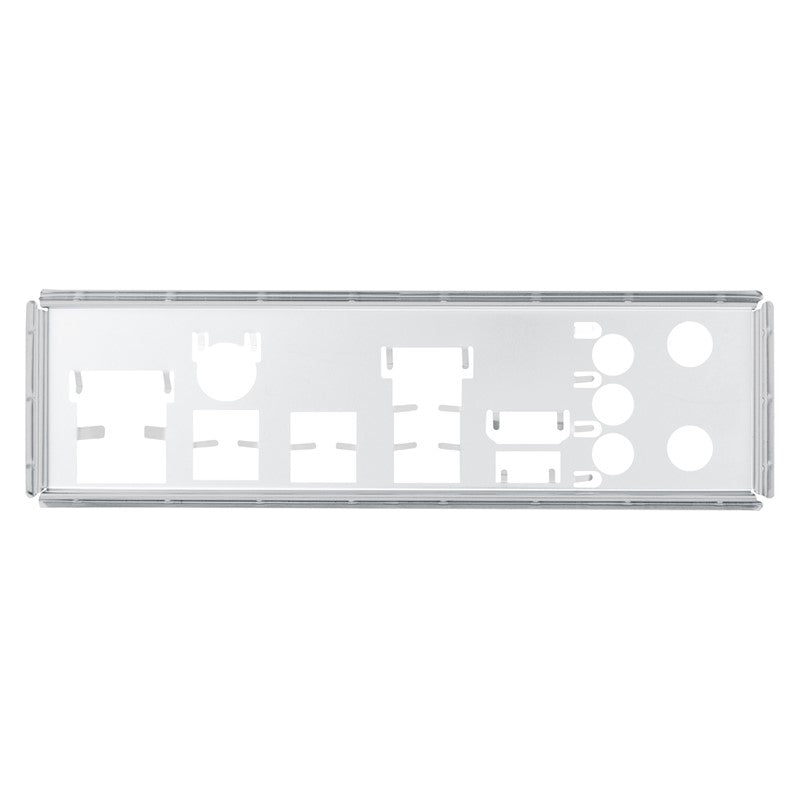

1 x I/O Shield |
|
1 x M.2 Rubber Package |
|
2 x Screw packages for M.2 SSD |
Documentation |
1 x User guide |
Operating System |
Windows® 11, Windows® 10 64-bit |
Form Factor |
ATX Form Factor |
|
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
