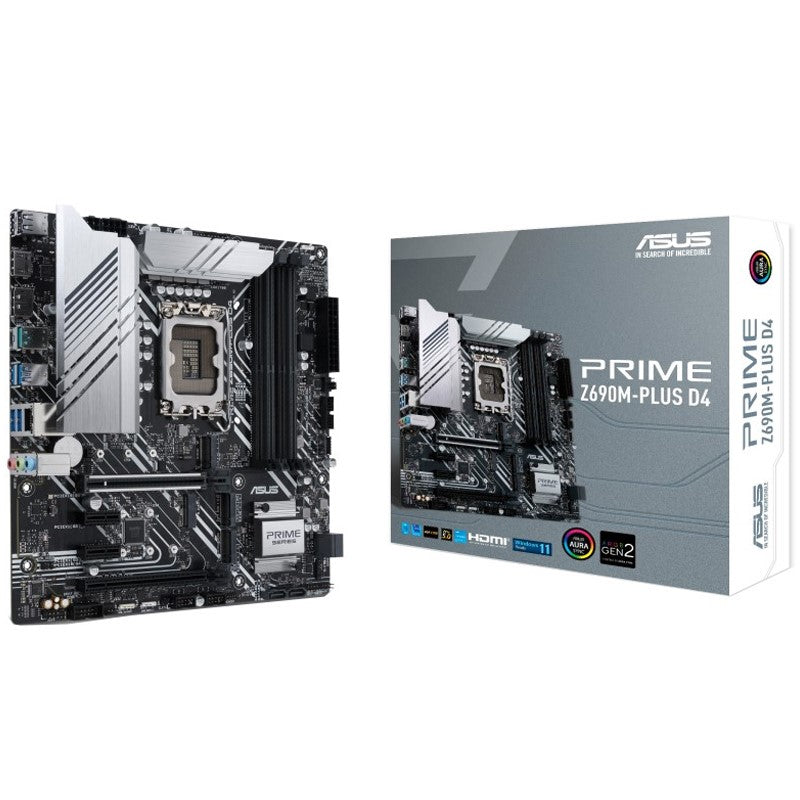

Asus PRIME Z690M-PLUS D4, Socket LGA 1700, mATX Gaming Motherboard |
|
|
FlexibilityComprehensive controls form the foundation of the ASUS Prime series.The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. |
|
|
Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control.A built-in search feature makes it easy to find options, and various advanced functions |
|
|
Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settingsCOOLINGPrime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. |
|
|
VRM Heatsinks and High-quality Thermal PadsTwo massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.Cooler by DesignPrime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS. |
|
|
Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.AIO Pump HeaderA dedicated PWM/DC header for self-contained water-cooling setups. |
|
|
DDR4 5333 (OC)Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth.ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. |
Specifications:
|
CPU |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
|
Chipset |
Z690 |
|
Memory |
4 x DIMM, Max. 128GB, DDR4 |
|
|
Dual Channel Memory Architecture |
|
Graphics |
1 x DisplayPort** |
|
|
1 x HDMI® port*** |
|
Expansion Slots |
Intel® 12th Gen Processors |
|
|
1 x PCIe 5.0/4.0/3.0 x16 slot* |
|
|
Intel® Z690 Chipset** |
|
|
1 x PCIe 3.0 x16 slot (supports x4 mode)* |
|
|
1 x PCIe 3.0 x1 slot |
|
Storage |
Intel® 12th Gen Processors, Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
|
|
M.2_1 slot (Key M), type 2242/2260/2280/22110 |
|
|
- Intel® 12th Gen processors support PCIe 4.0 x4 mode. |
|
Wireless & Bluetooth |
M.2 slot only (Key E, CNVi & PCIe)* |
|
USB |
Rear USB:Total 8 ports |
|
|
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
|
|
1 x USB 3.2 Gen 2 ports (1 x Type-A ) |
|
|
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
|
|
2 x USB 2.0 ports (2 x Type-A) |
|
Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
|
|
1 x USB 3.2 Gen 2 ports (2 x Type-A) |
|
|
2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A) |
|
|
1 x DisplayPort |
|
|
1 x HDMI® port |
|
|
1 x Intel® 2.5Gb Ethernet port |
|
|
5 x Audio jacks |
|
|
1 x Optical S/PDIF out port |
|
|
1 x PS/2 Keyboard/Mouse combo port |
|
Internal I/O Connectors |
Fan and cooling related |
|
|
1 x 4-pin CPU Fan header |
|
|
1 x 4-pin CPU OPT Fan header |
|
|
1 x 4-pin AIO Pump header |
|
|
3 x 4-pin Chassis Fan headers |
|
BIOS |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
|
Operating System |
Windows® 11 64-bit, Windows® 10 64-bit |
|
Form Factor |
microATX |
|
|
24.4cm x 24.4cm |
