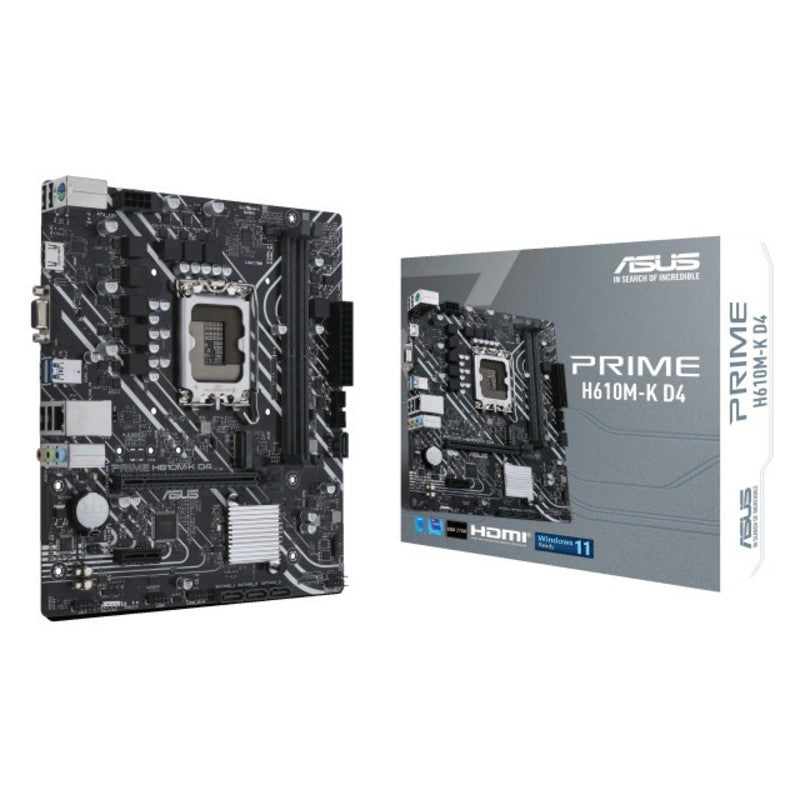

Asus Prime H610M-K D4, Socket LGA 1700, mATX Gaming Motherboard
|
Detail Info
- Intel LGA 1700 Socket: Ready for 12th Gen Intel processors
- Comprehensive Cooling: PCH heatsink and Fan Xpert
- Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 support
- 5X Protection III: Multiple hardware safeguards for all-round protection
Key Features
- Product Type : Motherboard
- Motherboard : H610
Product Details
 |
ASUS Prime Series ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. |
 |
All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. |
 |
Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. |
Specifications
|
CPU Socket |
Socket 1700 |
|
CPU Brand |
Intel |
|
Installed Processors (Max) |
0 (1) |
|
Supported Processor Manufacturer |
Intel |
|
Supported Processors |
12th Gen Intel Core, Pentium Gold and Celeron Processors |
|
64-bit Support |
Yes |
|
Socket |
LGA1700 |
|
USB Ports |
2 x USB 3.0 |
|
|
4 x USB 2.0 |
|
HDMI Port |
1 x HDMI 2.1 |
|
VGA Port |
1 x D-Sub |
|
Keyboard/Mouse Combo Port |
1 x PS/2 |
|
RJ-45 Ports |
1 x RJ-45 |
|
Audio Line In Ports |
1 x 3.5mm Jack |
|
Audio Line Out Ports |
1 x 3.5mm Jack |
|
Microphone In Port |
1 x 3.5mm Jack |
|
SATA Connectors |
4 x SATA III |
|
USB Connectors |
1 x USB 3.0 header (supports 2 ports) |
|
|
1 x USB 2.0 header (supports 2 ports) |
|
Speaker |
1 x Speaker header |
|
Front Panel Connectors |
1 x Front Panel |
|
|
1 x Front Audio |
|
Cooling Fan Support |
1 x CPU fan header |
|
|
1 x Chassis fan header |
|
S/PDIF Connectors |
1 x S/PDIF Out header |
|
Serial Connectors |
1 x COM header |
|
TPM Header |
1 x SPI TPM header |
|
Power Connector Port |
1 x 24-pin ATX |
|
|
1 x 8-pin EPS |
|
Other Connectors |
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA) |
|
|
1 x 4-pin RGB LED header |
|
Memory Bus Speed |
Up to 3200 MHz |
|
Memory Type |
DDR4 |
|
Maximum RAM |
64 GB |
|
Memory Slot |
2 x DIMM |
|
Chipset Manufacturer |
Intel |
|
Northbridge |
H610 |
|
SATA Supported |
Yes |
|
Number of PCI Express Slots |
1 x PCI Express 4.0 x16 slot |
|
|
1 x PCI Express 3.0 x1 slot |
|
Integrated Graphics Supported |
Yes |
|
Integrated Sound |
Realtek |
|
Integrated Network |
Realtek |
|
Network Speeds Supported |
Up to 1 Gbps |
|
Operating Systems Supported |
Microsoft Windows 11 / 10 64-bit |
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
Software Included (may be trial or restricted) |
Yes |
|
Drivers |
Yes |
|
Form Factor |
MicroATX Motherboard |
|
In The Box |
ASUS Prime H610M-K D4 Motherboard |
|
|
2 x SATA 6Gb/s cables |
|
|
1 x I/O Shield |
|
|
1 x M.2 ANCHOR |
|
|
1 x Support DVD |
|
|
1 x User Guide |
|
Width |
234 mm |
|
Length |
203 mm |
|
Memory Channel |
Dual |
|
Number of SATA Ports |
4 port(s) |
|
Number of USB Ports |
6 port(s) |
|
SATA III Support |
Yes |
|
USB 3.0 Support |
Yes |
|
VGA Connection |
Yes |
|
HDMI Connection |
Yes |
|
Motherboard Form Factor |
mATX |
|
Motherboard Power Connectors |
8-Pin |
|
Motherboard Chipset |
Intel H610 |
|
Internal USB3.0 Header |
Yes |
|
M.2 Support |
Yes |
|
On-board RGB Control |
ASUS Aura Sync |
|
Memory Speed |
3200 MHz |
|
RGB Header Type |
4-Pin RGB |
